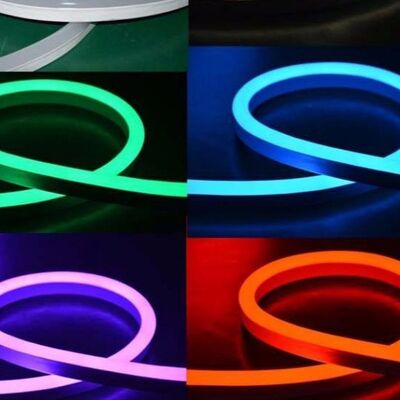

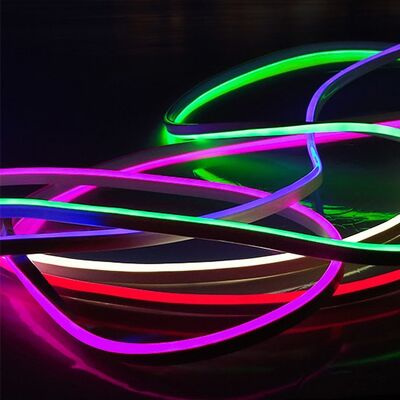

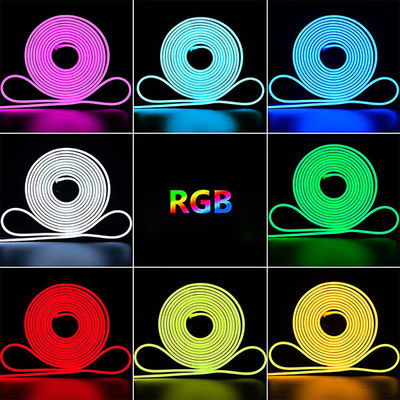

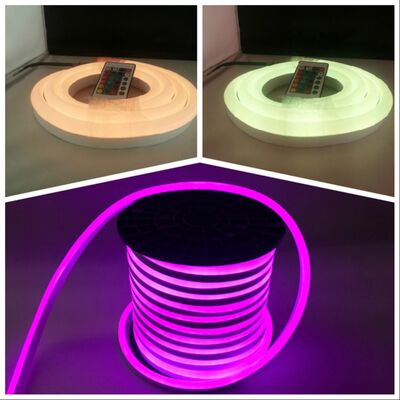

LED RGB NEON LIGHT, AC220V Flexible RGB LED Neon Light Strip, 60 LEDs/M, Waterproof, Multi Color Changing

• NEW TYPE NEON LED LIGHT: Replacement for traditional Neon lighting of Structure outline such as Roofs, Windows, Doors, Storefronts and Carports. Perfect for home and garden lighting decoration.
• EASY TO INSTALL: Waterproof Neon light strip can use Indoor and Outdoor,12V DC input voltage.
• LOW POWER CONSUMPTION: Super Bright LED light running with Low Temperature. All the light spread and completely smooth, luminous very even.
• FLEXIBLE AND CUTTABLE: Neon light strip can be shaped, formed or bent in any angle. It can be cut in every 1.64ft/0.5m without damaging the rest strips.
• ECO-FRIENDLY: No splash and UV, without mercury and no damage to human and environment.

Detailed Technical Specification: RGB LED Neon Flex Rope Light

Product Overview

• LED source: SMD5050 Tri-chip RGB (60 LEDs/m)
• Voltage variants: 12V DC / 24V DC / 110V AC / 220V AC
• Power consumption: 8W/m (12V/24V) · 10W/m (110V/220V)
• Profile: 14mm × 26mm rectangular, milky-white ECO PVC jacket
• Control: PWM controller — 16 million colors, static/dynamic/chase/fade effects
• Protection: IP65 waterproof, 100% unbreakable PVC construction
• Cutting: 50cm (12V/24V/110V) / 100cm (220V) at marked intervals
• Max run: 10m (12V) / 20m (24V) / 100m (110V/220V)

Detailed Feature Breakdown

1. SMD5050 Tri-Chip LED — Superior to Entry-Level 3528

• Tri-chip architecture: Each SMD5050 package integrates 3 independent LED dies (1 red + 1 green + 1 blue) into a 5.0×5.0mm footprint. This delivers ~3× higher luminous output per meter vs. 3528 strips — 14.4W/m configuration outputs ~1400 lm/m, with no "dotty" LED hotspots.
• True color mixing: Tri-chip design enables tighter color blending with no visible color fringing on dynamic effects. Supports 16-million-color RGB tuning via DMX512 / SPI / PWM controllers.
• High efficacy, low energy: 90% energy savings vs. traditional 25–30W/m glass neon. Low heat output, safe to touch even after 24hrs continuous operation.
• Long lifespan: 50,000-hour rated lifespan (L70 standard) — ~5.7 years continuous operation, or ~11.4 years at 12hrs/day.
• 120° beam angle: Wide, uniform light distribution ideal for architectural outlining and ambient color washes.

2. Stringent Wavelength Control — ±3nm Tolerance

• ±3nm wavelength tolerance: Every LED is binned to within ±3nm of the target wavelength. Anything outside this tolerance is scrapped — no exceptions for cost savings.
• Identical glow across rollouts: This strict control ensures 100% consistent color reproduction across 10, 50, or 100+ location deployments — even years apart. Critical for franchise chains, hotel groups, and global brand campaigns where color fidelity IS brand identity.
• Zero color drift: Low light attenuation SMD5050 dies maintain wavelength stability across the full 50,000-hour lifespan — no "pink-tinted white" or "green-shifted blue" degradation over time.

3. FPCB Protective Circuit Design — Engineered for Reliability

• 2oz thickened copper foil​ (vs. standard 1oz): Minimizes voltage drop on long runs. 12V/24V DC versions support up to 20m single-feed without "bright head / dim tail" effect.
• Parallel circuit segmentation: Every 3 LEDs (12V) or 6 LEDs (24V) form an independent parallel branch. If one LED fails, the rest of the run stays lit — eliminating the "total strip failure" vulnerability of cheap series-only circuits.
• ESD & surge protection: Built-in electrostatic discharge protection on FPCB pads, plus optional overcurrent protection for outdoor installations.
• UL94-V0 flame-retardant FPCB substrate: Meets commercial building code requirements for public-space installs (hotels, malls, theaters, stadiums).
• Result: A neon flex that doesn't just survive installation — it thrives for years in demanding commercial environments.

4. First-Class Eco-Friendly UV-Resistant ECO PVC Material

• Eco-friendly & non-toxic: RoHS / REACH compliant, zero lead, mercury, or phthalates — safe for indoor public spaces (schools, hospitals, retail) and outdoor environments.
• UV stabilizer additive: Resists photodegradation for 18–24 months of light outdoor exposure (covered patios, sign boxes, walkway outlines) without yellowing or brittleness.
• Milky-white diffuser jacket: Scatters direct SMD5050 emission into continuous, dot-free RGB glow — critical for the "no LED dot" performance on dynamic color effects.
• Dome surface profile: The 14×26mm rectangular dome shape increases luminosity and delivers even light mixing — no dark spots, no color banding, smooth transitions across the entire run.
• Ambient temp range: -30°C to +45°C — performs reliably in northern winters and hot-climate summers.
• Optional upgrade: For extreme outdoor (coastal, direct rain, 3+ years exposure), we recommend our silicone co-extruded IP68 series. This ECO PVC line is optimized for cost-conscious light outdoor / indoor-first projects.

5. Dome Surface — High Brightness, Even Color Mixture

• Dome-shaped diffuser: The curved milky-white PVC surface acts as an optical lens, scattering RGB light evenly across 120°+ beam angle. Result: continuous, dot-free color wash with no visible LED hotspots.
• Even color mixing: Red + Green + Blue dies fire simultaneously through the diffuser — producing true, saturated colors (pure red, pure green, pure blue, and millions of blended hues) with zero color fringing.
• Dynamic effect ready: PWM controllers drive chase, fade, flash, and music-sync effects with smooth color transitions — the dome diffuser ensures every effect looks buttery-smooth, never "steppy" or dotted.
• White PVC base edge: The base of the profile uses white PVC to increase luminosity and reflect internal light outward — maximizing perceived brightness.

6. Easy Installation — Cut, Tie, Reconnect

• Field-cuttable at marked intervals:
  • 12V DC: every 50cm / 3 LEDs per cut unit
  • 24V DC: every 50cm / 6 LEDs per cut unit
  • 110V AC: every 50cm / 60 LEDs per cut unit
  • 220V AC: every 100cm / 60 LEDs per cut unit
  • Cut ONLY at marked black lines to avoid damaging parallel circuits.
• Tie to any frame: The flexible PVC profile can be tied to existing structures using ribbons, zip ties, or string — no aluminum channels or adhesive backing required for many applications.
• Horizontal bending: Minimum bend diameter 4cm — wraps around columns, arches, and irregular shapes without kinking.
• Reconnect accessories available: Nylon waterproof connectors, splice pins, end caps, and heat-shrink tubes enable cut/reseal operations while retaining full IP65 rating.
• Mounting flexibility:
  • Indoor: 3M VHB double-sided tape on FPCB backside for peel-and-stick
  • Outdoor: Aluminum extrusion channels (sold separately) for added protection and heatsinking
• Tool-light setup: 12V/24V DC versions plug directly into PWM controllers; 110V/220V AC versions connect straight to mains power.

7. 100% Unbreakable & 100% Waterproof

• 100% unbreakable construction: The ECO PVC jacket absorbs impacts that would shatter traditional glass neon — no hazardous shards, no freight breakage losses. Fully enclosed electronics: no exposed glass tubing.
• IP65 waterproof rating: Dust-tight and resistant to low-pressure water jets — suitable for covered outdoor installations, building outlines, walkway guidance, and marine/humid environments.
• Critical install requirement: All cut points, connector joints, and strip terminations MUST be sealed with provided silicone glue​ during installation to maintain IP65 rating. This step is non-negotiable for outdoor deployments.
• Low maintenance: 1/10 the energy consumption of glass neon, fully enclosed electronics, no gas refills, no electrode replacements. Set it and forget it for 50,000+ hours.
• Temperature resilience: -30°C to +45°C ambient operating range — performs in Nordic winters and desert summers alike.

Voltage Variant Comparison

Ideal Applications

🏢 Architectural Outlining

• Building cornices, window frames, rooflines
• Bridge parapets, pedestrian railings
• Sculpture edge lighting, monument contours
• Billboard and ad board fringe illumination

🌆 Urban & Landscape Lighting

• Walkway and park guiding-line lighting systems
• Garden landscaping, tree wrapping, planter edges
• Municipal trail guidance, plaza feature lighting
• Water feature perimeters (covered/semi-outdoor)

🏨 Commercial & Hospitality

• Hotel lobby feature walls, reception desk accents
• Restaurant & bar dynamic backdrops — color-changing with music or mood
• Retail window displays, storefront borders
• Department store shelf-edge accents, escalator well trims

🎪 Events & Entertainment

• Stage lighting, concert backdrops, festival installations
• KTV, nightclub, and lounge dynamic mood lighting
• Wedding backdrops, birthday party color themes
• Theater auditorium walkways, cinema exit guidance

🏠 Residential & DIY

• Bedroom accent walls, gaming room dynamic glow
• Patio pergola outlines, garden trellis wrapping
• Furniture edging, headboard lighting
• Holiday and seasonal decor (Christmas, Halloween, etc.)

🚤 Marine & Vehicle

• Boat cabin and deck lighting (IP65 handles marine humidity)
• RV and camper van interior dynamic lighting
• Vehicle underglow (12V DC matches automotive systems)

Why Choose Vasten RGB Neon Flex Over Alternatives

Vasten Quality Backing

• Manufacturer since 2011: 5,000+ sqm dust-free workshop, automated SMT production lines
• Strict QC pipeline: 100% LED incoming inspection, 48–72hr burn-in per batch, 2-year warranty
• Certifications: CE / RoHS / EMC / UKCA compliant for global customs clearance
• Color consistency guarantee: ±3nm wavelength binning on every production batch
• Supply ability: 2,500 meters/month per SKU
• Lead time: 3–5 days for standard orders
• Project pedigree: Same QC standards used for Disneyland, Happy Valley, and British royal wedding installs

⚠️ Installation Notes

1. Voltage selection: 12V/24V DC for low-voltage safety and finest cutting resolution; 110V/220V AC for long single-feed runs (up to 100m).
2. Cutting: Cut ONLY at marked intervals. Cutting elsewhere damages the parallel circuit.
3. Waterproofing: All cut points, connector joints, and terminations MUST be sealed with provided silicone glue to maintain IP65 rating.
4. Bend direction: Horizontal bending only. Min. bend diameter 4cm. Do not twist or bend vertically.
5. Max run length: Respect maximum single-feed runs (10m/12V, 20m/24V, 100m/AC) to avoid voltage drop.
6. Control system: Pair with a PWM/DMX512 RGB controller for full color and dynamic effect capability.
