Energy RGB LED Neon Flex with SMD5050 Tri chip LEDs and PWM Controller for Smooth Color Mixing in Indoor and Outdoor Applications

1. SMD5050 Tri-Chip LED Light Source

• Brightness advantage: ~3× higher luminous output per meter than 3528 strips (14.4W/m config delivers ~1400 lm/m), with no "dotty" LED hotspots
• Color accuracy: Tri-chip design enables tighter color mixing (no visible color fringing on dynamic effects) and supports 16-million-color RGB tuning via DMX512/SPI controllers
• Efficiency: 90% energy savings vs. traditional glass neon (12V/24V low-voltage drive, <30℃ surface temp)

2. Consistent & Stringent Wavelength Control (±3nm Tolerance)

• Incoming LED batch testing: Every SMD5050 reel is spectrograph-tested for wavelength deviation before production
• Rejected batches: Any lot with >±3nm deviation is scrapped (no exceptions for cost savings)
• Result: Identical glow across 10/50/100+ location rollouts, even years apart — critical for brand consistency

3. FPCB Protective Circuit Design

• 2oz thickened copper foil​ (vs. standard 1oz): Minimizes voltage drop on long runs (up to 10m per power feed) — no "bright head / dim tail" effect
• Parallel circuit segmentation: Every 3 LEDs (12V) / 6 LEDs (24V) form an independent parallel branch. If one LED fails, the rest of the run stays lit (no total strip failure like cheap series-only strips)
• ESD & surge protection: Built-in electrostatic discharge protection on FPCB pads, plus optional overcurrent protection for outdoor installs
• UL94-V0 flame-retardant FPCB substrate: Meets commercial building code requirements for public-space installs

4. First-Class Eco-Friendly UV-Resistant PVC Jacket

• RoHS/REACH compliant: Zero lead, mercury, or phthalates — safe for indoor public spaces (schools, hospitals, retail) and outdoor environments
• UV stabilizer additive: Resists photodegradation for 18–24 months of light outdoor exposure (covered patios, sign boxes, walkway outlines) without yellowing or brittleness
• Food-grade PVC formulation: Optional for hospitality/food retail installs where indirect food contact is a concern
• Note: For extreme outdoor (coastal, direct rain, 3+ years exposure), we recommend upgrading to our silicone co-extruded series — this PVC line is optimized for cost-conscious light outdoor/indoor-first projects.

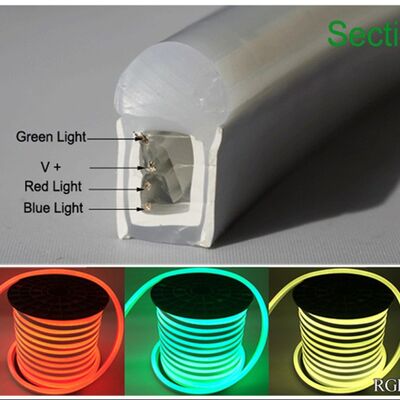

5. Dome Surface Profile: High Brightness + Even Color Mixing

• Built-in diffusion: The dome shape acts as a secondary diffuser, breaking up LED point sources into 120° uniform, continuous glow — zero visible LED dots, even on close inspection
• Optimized for tri-chip mixing: The rounded inner surface reflects and blends light from the 3 dies per SMD, eliminating color fringing (e.g., no red "halo" around green text) — critical for crisp brand logos and dynamic chase/gradient effects
• High luminous efficacy: 105–115 lm/W, so you get bright output without excessive power draw

6. Tool-Free Install, Cuttable & Reconnectable

• Marked cut points: Black cut lines every 5cm (12V) / 10cm (24V) along the strip — cut only at these points to avoid damaging circuits
• IP65 waterproof reconnect accessories: Matching nylon connectors + silicone sealant kits available — cut, connect, reseal in <5 minutes, retain full waterproof rating
• Mounting flexibility:
  • Indoor: 3M VHB double-sided tape pre-applied to FPCB backside
  • Outdoor: Compatible with standard aluminum extrusion channels (sold separately) for added protection and heatsinking
• Bend radius: 20mm minimum — follows curved building outlines, round signage, column wraps, and irregular landscape features without kinking

7. 100% Unbreakable & 100% Waterproof (IP65)

• Unbreakable: PVC jacket + flexible FPCB construction absorbs impacts that would shatter glass neon — survives shipping knocks, jobsite handling, and accidental kicks in high-traffic areas (retail aisles, event venues) with zero damage
• IP65 waterproof rating:
  • Injection-molded nylon end caps + potted silicone sealant at both strip ends
  • Jacket-to-FPCB bonding prevents water ingress at cut points when reconnected with our accessories
  • Tested to IP65 spray standards: Resists light rain, sprinkler overspray, and outdoor humidity — suitable for covered patios, sign boxes, and walkway outlines (not submersible — for immersion use, upgrade to our IP68 silicone series)

Typical Applications (PVC SMD5050 Series)

• Retail chain storefront outlines & logo backlighting
• Café/bar interior accent strips (under counters, shelf edges)
• Municipal park walkway guidance lighting
• Event/trade show temporary decor (reusable, shatterproof)
• Light-duty commercial facade outlines (covered entries)

Vasten Quality Backing

• 100% FPCB/LED incoming inspection
• 48–72hr mandatory burn-in per production batch
• 2-year pro-rata warranty
• CE / RoHS / EMC certified for global customs clearance
• Project pedigree: Supplied to Disneyland, Happy Valley, and British royal wedding installs (same QC bar across all product tiers)

Specification:

Advantages of RGB LED neon ribbon?
1. Led Strip Light adopts SMD5050 Tri-chip LED as its light source
2.Consistent and stringent wavelength control standards +/_3nm
3. FPCB Protective Circuit Design
4. Led Strip Light adopts first-class eco-friendly UV-resistant PVC material
5. Dome surface, high brightness, even mixture of colors
6. Led Strip Light is easy to be installed, can be cut and reconnected (connection accessories available)
7. 100% unbreakable; 100% waterproof.

What are the applications of RGB LED neon?
1. Indoor and outdoor architectural outline decorations
2. Walkway and park guiding-line lighting system, and landscaping
3. Ideal for bridge, sculpture, building contour, and board fringe illuminating decoration
