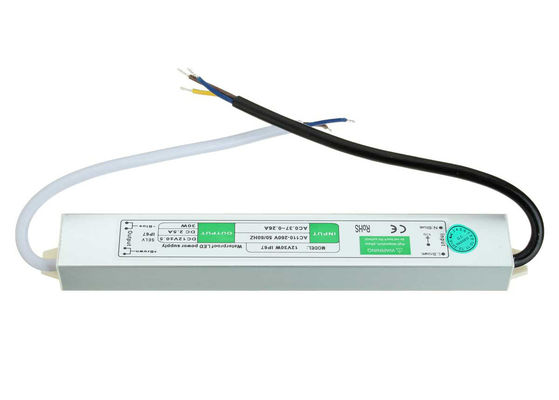

30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver

  • 30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver
  • 30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver
Place of Origin China
Brand Name Vasten
Certification CE & RoHS
Model Number TA-12030
Minimum Order Quantity 10 pcs
Price Negotiation US$/Meter
Packaging Details 50PCS/Carton
Delivery Time 3-5 days
Payment Terms T/T, Paypal, Western Union
Product Details
Power 30w Protections Short Circuit / Overload/Over Temperature
Cooling Free Air Convection Suitable LED Lighting
Waterproof IP67 Certification CE, RoHS
High Light

smps switch mode power supply

,

switching power supply adapter
Leave a Message
Product Description

12v 30w Transformer Power Supply Driver Led Light Waterproof Ip67

30W DC Waterproof LED Transformer Power Supply Driver


Features :

30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 0IP67 design for indoor or outdoor installations

30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 1Protections: Short circuit / Overload/Over temperature

30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 2Cooling by free air convection
30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 3100% full load burn-in test

30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 4Suitable for LED lighting
30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 5Products through CE, RoHS Certification30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 6

     1 years warranty IP67

SPECIFICATION



MODEL

 12V 30W 24V 30W











OUTPUT

 DC VOLTAGE 12V 24V
RATED CURRENT 2.5A 1.25A
CURRENT RANGE 0~2.5A 0~1.25A
RATED POWER 30W 30W

NOTE.2

RIPPLE & NOISE (max.)

 150mV 150mV

NOTE.3

VOLTAGE TOLERANCE

 ±4% ±2%
SETUP, RISE TIME 80ms/220VAC
HOLD UP TIME (Typ.) 60ms/220VAC







INPUT

 VOLTAGE RANGE 170 ~ 250VAC
FREQUENCY RANGE 50 ~ 60Hz
POWER FACTOR (Typ.) PF>0.6/220VAC
EFFICIENCY (Typ.) 80% 81%
AC CURRENT (Typ.) 0.28A/220VAC
INRUSH CURRENT (Typ.) COLD START 40A/220VAC





PROTECTION

 Short circuit Protection type : recovers automatically after fault condition is removed
Overload overload protected @ 145-160% above peak rating
Over temperature Protection type : Shut down o/p voltage, re-power on to recover





ENVIRONMENT

 WORKING TEMP. -30 ~ +50℃ (Refer to output load derating curve)
WORKING HUMIDITY 20 ~ 99% RH non-condensing(Waterproof)
STORAGE TEMP., HUMID IT Y -40 ~ +80℃ , 10 ~ 99% RH





SAFETY & EMC

 SAFETY STANDARDS CE Mark (LVD) , IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC I/P-GND:1.5KVAC



EMC Test Standards



EN55015:2006 ; EN61547:1995+A1:2000 ; EN61000-3-2:2006 ;

EN61000-3-3:1995+A2:2005 ; EN61347-1:2001 ; EN61347-2-13:2006









NOTE



1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25℃ of ambient temperature.



2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 1 0 uf parallel capacitor.



3. Tolerance : includes set up tolerance, line regulation and load regulation.









DIMENSION



192×29×20.5(mm) (L×W×H)



CARTO N QUANTI TY



50PCS/Carton



CARTON SIZE



390×215×200(mm)



WEIGHT



215g/PCS

30w Waterproof Electronic Led Driver , Overload Protection Waterproof Led Driver 7
