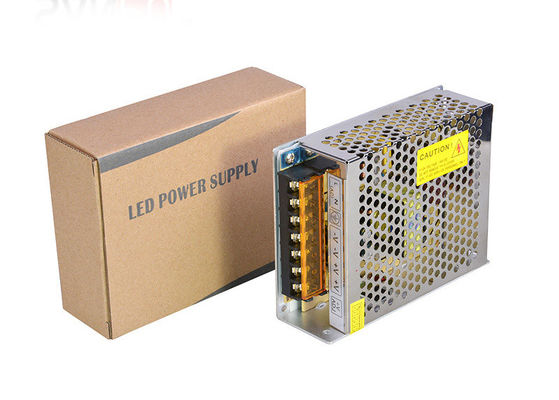

LED 5v Switch Mode Power Supply , LED Neon Flex Light Smps Power Supply

  • LED 5v Switch Mode Power Supply , LED Neon Flex Light Smps Power Supply
  • LED 5v Switch Mode Power Supply , LED Neon Flex Light Smps Power Supply
  • LED 5v Switch Mode Power Supply , LED Neon Flex Light Smps Power Supply
  • LED 5v Switch Mode Power Supply , LED Neon Flex Light Smps Power Supply
Place of Origin China
Brand Name Vasten
Certification CE & RoHS
Model Number SPA-100W-12V
Minimum Order Quantity 10 pcs
Price Negotiation US$/Meter
Packaging Details N.W; 0.303kg/unit, Box Size: 135*103*44mm; CTN size: 464*357*372mm, 63 pcs/CTN
Delivery Time 3-5 days
Payment Terms T/T, Paypal, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

smps switch mode power supply

,

switching power supply adapter
Leave a Message
Product Description

DC 5V/12V /24V/48V100W Output LED Power Supply Non-waterproof for LED Neon Flex, LED Strip Light



PS100-W1V
MODEL 5V100W 12V100W 15V100W 24V100W 48V100W
OUTPUT DC VOLTAGE 5V 12V 15V 24V 48V
RATED CURRENT 20A 8.5A 6.7A 4.5A 2A
CURRENT RANGE 0~20A 0~8.5A 0~6.7A 0~4.5A 0~2A
RATED POWER 100W 100W 100W 100W 100W
RIPPLE& NOISE (MAX.)NOTE2 100mV 120mV 120mV 120mV 200mV
VOLTAGE TOLERANCENOTE3 ±1% ±1% ±1% ±1% ±1%
SETUP , RISE TIME 200ms/220VAC 50ms/220VAC
HOLD UP TIME(Typ.) 20ms/VAC
INPUT VOLTAGE RANGE 85~132VAC/170~264VAC
FREQUENCY RANGE 47~63Hz
POWER FACTOR(Typ.) PF>0.6/220VAC
EFFICIENCY(Typ.) 81% 84% 85% 85% 86%
AC CURRENT(Typ.) 2.4A/115V 1.2A/230V
INRUSH CURRENT(Typ.) cold start 20A/115V 40A/230V
  short circiut protection type: recovers automatically after fault condition is removed
PROTECTION Over load 105~135% hiccup mode, auto-recovery
Over voltage 115~135%hiccup mode, auto-recovery
ENVIRONMENT WORKING TEMP -20°C~+60°C(no frost)
WORKING HUMIDITY 20%~90%RH
STORAGE TEMP , HUMIDITY –40°C~85°C/10%~95%RH
SAFETY&EMC SAFETY STANDARDS CE ROHS EMC
WITHSTAND VOLTAGE I/P-O/P: 1.5KVAC/1min, I/P-F/G: 1.5KVAC/1min, O/P-F/G: 0.5KVAC/1min
EMC Test Standards EN55015:2006; EN61547:1995+A1:2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61347-3-13:2006
NOTE 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.





Product Feature:



  • Cooling by free air convection and LED indicator for power on.
  • Automatic protection for short circuit, over voltage, over current & high temperature.
  • It is widely used in CCTV, radio, camera, correspondence, LED display screen, industry control, broadcasting, desktop, network, etc.
  • One Output position design for power supplying
