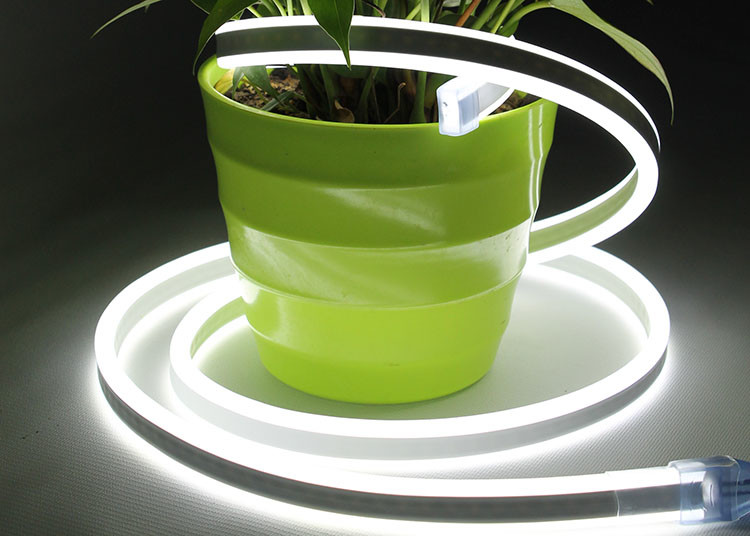

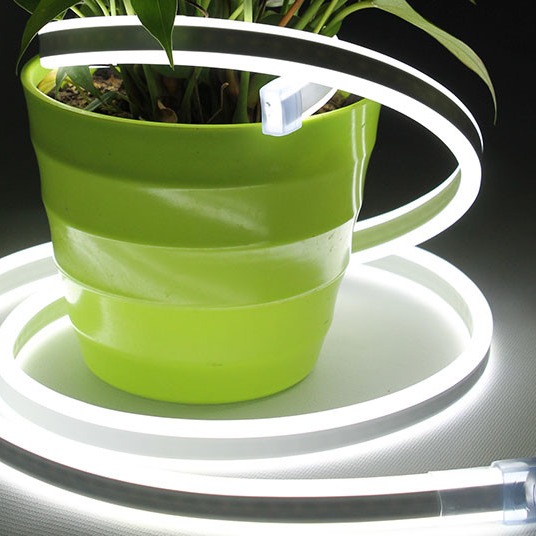

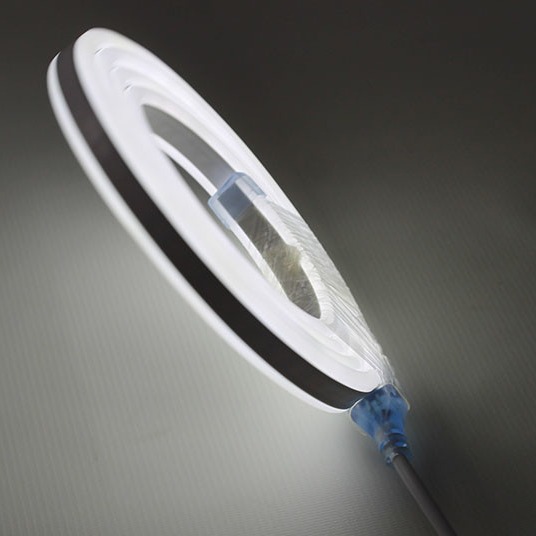

Detailed Product Specification: Double-Sided Lighting LED Neon Flex Rope Light – White Light, 220V AC Input, Waterproof

Product Overview

• LED source: High‑brightness SMD2835 (white light variant featured)
• Input voltage: 220V AC (direct mains connection, no external driver needed for long runs)
• Profile: Hollow‑center rectangular design with dual‑side light emission
• Light effect: Brighter than single‑side flex; uniform 120° glow on both faces plus ambient light through the hollow channel
• Protection rating: IP65 waterproof (dust‑tight, splash‑resistant)
• Jacket material: Premium flexible PVC, UV‑resistant
• Minimum bend diameter: ~4 cm (horizontal bending only)
• Cutting interval: Every 100 cm (220V version) / 50 cm (110V version available on request)

Detailed Feature Breakdown

1. Double‑Sided + Hollow‑Out Lighting Effect — Brighter & More Dimensional

• Dual‑face emission: The LED array is positioned to emit light from both lateral faces of the strip simultaneously. When suspended or tied to a frame, the strip appears illuminated from every viewing angle — no “dark side” that cheapens single‑side flex installations.
• Hollow‑center design: Unlike solid‑core neon flex, the center channel remains open, allowing light to pass through and create a distinctive “floating glow” effect. This is particularly striking when the strip is wrapped around cylindrical objects, hung in free space, or used as a border where light should bleed through from behind.
• Brighter output: Because light escapes from two faces and the center, the perceived brightness is significantly higher than standard single‑side flex of the same LED density — ideal for large‑area architectural outlines and high‑visibility signage.
• White light variant: Delivers a clean, neutral white glow (6000–6500K cool white or 2700–3000K warm white, depending on variant) — popular for modern minimalist interiors, retail displays, and architectural accent lighting.

2. Tool‑Free Installation — Tie It On, No Accessories Needed

• No mounting channels required: Unlike standard neon flex that needs aluminum extrusions or adhesive backing, this strip can be tied directly to any existing frame, railing, pergola, or structure using common ribbons, zip ties, or string. The hollow‑center design accommodates ties without compressing the light‑emitting surfaces.
• Instant setup: Uncoil, position, tie in place, connect to 220V mains — done. Ideal for temporary installations (events, holiday decor, pop‑up activations) where speed and reversibility matter.
• Minimal hardware: No screws, brackets, or specialized tools needed. A handful of ribbons is all it takes to transform a bare frame into a glowing structure.
• Lightweight: ~0.2 kg/m — easy to suspend from lightweight frames, tent poles, or tree branches without additional support.
•

3. 220V AC Direct Input — Long Runs Without Voltage Drop

• Direct mains connection: 220V AC input allows the strip to be connected directly to standard household/commercial power without an external low‑voltage driver. This simplifies wiring and reduces component cost for large‑scale installations.
• Extra‑long single‑feed runs: Up to 150 meters​ per single power feed — no “bright head / dim tail” effect, thanks to the high‑voltage constant‑current design. Perfect for building perimeters, bridge outlines, and long walkway guides.
• Safe for permanent installation: Fully enclosed PVC jacket with reinforced insulation meets CE/RoHS safety standards. Surface temperature <30°C even after 24 hours continuous operation.
• Dimming compatible: Can be paired with leading‑edge or trailing‑edge AC dimmers (phase‑cut) for adjustable brightness — consult your electrician for compatibility.

4. IP65 Waterproof — Indoor & Outdoor Versatility

• IP65 rating: Dust‑tight and resistant to low‑pressure water jets — suitable for covered outdoor installations, patios, gazebos, boat cabins, and waterfront decks.
• UV‑resistant PVC jacket: Formulated to resist yellowing and brittleness from sun exposure — maintains optical clarity for consistent white glow over the product’s lifespan.
• Temperature range: -20°C to +45°C operating ambient — performs reliably in most temperate climates.
• Important note: All cut ends and connector joints MUST be sealed with silicone sealant​ (provided with accessory kits) to maintain IP65 rating in outdoor use.
•

5. Flexible & Field‑Cuttable

• Horizontal bending: 4 cm minimum bend diameter — wraps around columns, arches, and irregular shapes without kinking.
• Cuttable at marked intervals: 100 cm cut length for 220V version (60 LEDs per cut unit). Trim to exact length without damaging the rest of the strip.
• Reconnectable: Matching 220V AC connectors and end caps available for cut/reseal operations. Each cut section retains full IP65 rating when properly sealed.

6. Energy‑Efficient & Long‑Lasting

• Low power consumption: ~10 W/m — 90% energy savings vs. traditional glass neon (25–30 W/m).
• 50,000‑hour rated lifespan: ~5.7 years of continuous operation, or ~11.4 years at 12 hours/day — zero maintenance over its service life.
• No hazardous gases: Mercury‑free, unlike traditional glass neon which contains trace mercury vapor.

Ideal Applications

🏠 Residential & Home Decor

• Patio & pergola outlines: Tie to wooden beams or metal frames for a glowing canopy effect
• Garden trellises & arbors: Wrap around vertical structures for ambient white garden glow
• Deck railings: Tie to balustrade rails for safe nighttime visibility
• Bedroom accent walls: Suspend in free‑form patterns against walls or ceilings
• Furniture edging: Outline shelves, headboards, or cabinet fronts with a clean white glow

🎪 Events & Temporary Installations

• Wedding backdrops: Tie to arch frames, tent poles, or hanging grids for elegant white ceremony lighting
• Festival & fair booths: Wrap around booth frames for brand‑consistent white glow
• Pop‑up retail: Quick‑install perimeter lighting for temporary storefronts
• Birthday & party decor: Frame dance floors, photo booths, or dessert tables

🏢 Commercial & Hospitality

• Restaurant & bar accents: Wrap around bar counters, shelving, or architectural pillars
• Hotel lobby features: Suspend in geometric patterns from dropped ceilings
• Retail window displays: Frame mannequin platforms or product showcases
• Creating signs & borders: Build custom lettering or geometric borders by tying the strip to a pre‑shaped wire frame

🚤 Marine & Vehicle Lighting

• Boat cabin & deck lighting: Tie to handrails, grab bars, or cockpit frames (IP65 handles marine humidity)
• RV & camper van interiors: Flexible enough to follow curved ceilings and cabinet edges
• Vehicle underglow: Mount to vehicle undercarriage frames (220V AC requires inverter — 12V DC version also available)

🌳 Landscape & Architectural

• Walkway guidance: Tie to low fence posts or garden stakes along pathways
• Tree wrapping: Wrap around trunks and branches for magical garden glow
• Bridge & railing outlines: Tie to bridge parapets or pedestrian railings
• Sculpture illumination: Follow the contours of outdoor art installations

🎄 Holiday & Seasonal Decor

• Christmas: Frame rooflines, wrap trees, outline windows — white complements any color scheme
• Halloween: Clean white glow adds eerie elegance to haunted house setups
• New Year’s Eve: Create celebratory white light installations for parties and countdown events

Comparison: Double‑Side Hollow Flex vs. Standard Single‑Side Flex

Technical Specifications (Typical Values)

Vasten Quality Backing

• Manufacturer since 2011: 5,000+ sqm dust‑free workshop, automated production lines
• Strict QC pipeline: 100% LED incoming inspection, 48–72 hr burn‑in per batch, 2‑year warranty
• Certifications: CE / RoHS / EMC / UKCA compliant for global customs clearance
• Project pedigree: Same QC standards used for Disneyland, Happy Valley, and British royal wedding installs
• Supply ability: 3,000 meters/month per SKU; lead time 3–5 days for standard orders

⚠️ Installation Notes

1. Tie securely but not too tightly: Ribbons/zip ties should hold the strip in place without compressing the hollow center or pinching the LED circuit.
2. Bend horizontally only: Minimum bend diameter ~4 cm. Do not twist or bend vertically.
3. Seal cut ends outdoors: All cut points must be sealed with silicone sealant to maintain IP65 rating.
4. Electrical safety: Connection to 220V mains must be performed by a qualified electrician in accordance with local regulations.
5. Max run length: Do not exceed 150 m per single feed. For longer runs, inject power at both ends or use a 24V DC version (available on request).

Features:

• New Waterproof Double-sided LED Neon Light
  • High flexibility, easily DIY various shape
  • Brighter and fascinating lighting effect
  • Temperature sustainability, and UV resistance
• Only 8 watts per meter, low consumption, saving up to 90% of energy costs over glass neon
• Can be cut every 1-2/3 ft at marked intervals
• This series of products do the extreme cold light source, low heat, safe and durable, long service life, low maintenance cost
• Waterproof improvement!
  Free Waterproof Silicone Glue can be applied to the power connectors or the end caps and make the seal waterproof!
• Long and short PVC waterproof tube covers for reinforcing the cuts
• PVC splice connectors for protecting the cuts
• Splice connectors for splicing different colors

Specifications:

What are the applications of double lighting LED neon?

1. Indoor and outdoor architectural outline decorations
2. Walkway and park guiding-line lighting system, and landscaping
3. Ideal for bridge, sculpture, building contour, and board fringe illuminating decoration

4. With double-sided & hollow-out Lighting effect
