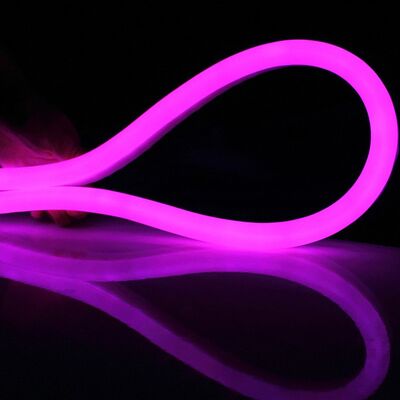

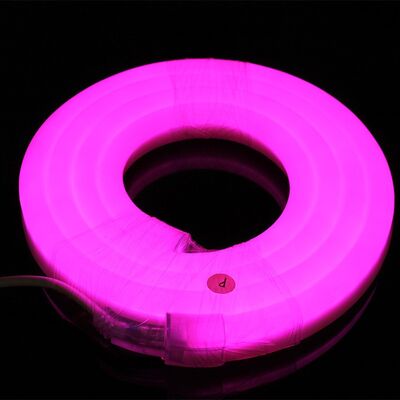

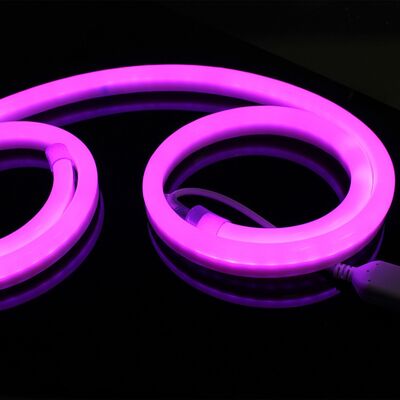

Mini LED Neon Flex flexible LED neon rope light with IP66 protection rating and ultra thin 8 by 16 millimeter square profile for indoor outdoor

Product Overview

• 110V AC version — Model TA-CS-2835P-110V
• 220V AC version — Model TA-CS-2835P-220V

Detailed Feature Breakdown

1. Milky-White ECO PVC Jacket — Optimized for Even Glow

• Light homogenization: The milky-white diffuser jacket scatters direct SMD2835 emission into a continuous, 120° linear glow — no visible LED dots even at close inspection, no dark spots between cut points or LED clusters.
• Daytime discretion: The milky-white profile has low visual impact on the install surface during daytime; at night, it delivers clean, uniform pink (or selected color) glow.
• Eco-friendly: ECO PVC is RoHS/CE compliant, non-toxic, and flame-retardant — safe for indoor public spaces (hotels, department stores, entertainment venues).
• Durability: UV-resistant and anti-aging formulation resists yellowing and brittleness in covered outdoor/semi-outdoor environments.

💡 Note: For the pink color variant, the glow emitted is pink while the jacket remains milky-white for optimal light diffusion. Fully pink-colored jackets are available on request for background-tint applications.

2. Ultra-Light-Stable SMD2835 LED Source

• 120 high-brightness SMD2835 LEDs/m (Epistar chip brand) — high density eliminates hotspots and delivers continuous, even luminance.
• Low light attenuation: Maintains consistent brightness across the full 50,000-hour rated lifespan, critical for 24/7 commercial installations.
• 450–550 lm/m output at just 8W/m — 90% energy savings vs. 25–30W/m traditional glass neon.
• 120° beam angle — soft, glare-free illumination suitable for architectural and decorative contexts.
•

3. Mini & Flexible — Fits Where Glass Neon Cannot

• 8×16mm square profile: 30–40% smaller than standard 12×22mm neon flex, 60% lighter than glass neon (~0.2kg/m). Fits narrow architectural trims, small-scale logo scripts, furniture edges, and sign boxes.
• 4cm minimum bend diameter: Bends horizontally to follow arched windows, tight brand serifs, bridge parapet curves, and irregular landscape features without kinking or circuit damage.
• 100% unbreakable: PVC jacket absorbs impacts that would shatter glass neon — no hazardous shards, no “dead-on-arrival” freight losses.

4. Easy to Install & Cuttable On-Site

• AC direct plug-in: 110V/220V AC input eliminates the need for external low-voltage drivers — simply connect to mains power via provided accessories. Ideal for long runs (up to 100m/150m per feed) without voltage drop.
• Field-cuttable: Cut at marked intervals (50cm for 110V, 100cm for 220V) using standard tools — the rest of the uncut strip continues operating normally.
• Mounting options: Pre-applied 3M VHB tape for indoor peel-and-stick; aluminum extrusion channels (sold separately) for outdoor protection and heatsinking.
• Connection accessories available: Nylon waterproof connectors, end caps, and silicone sealant kits for cut/reseal operations.
• IP66 (110V) / IP65 (220V) waterproof: Dust-tight, resistant to low-pressure water jets, light rain, and splashes. All joints MUST be sealed with provided silicone glue during installation to maintain waterproof rating.

5. Energy Efficient & Low Maintenance

• 90% energy savings vs. glass neon: 8W/m vs. 25–30W/m. For a 50m commercial install operating 8hrs/day, this flex consumes ~1,168 kWh/year vs. ~3,650 kWh/year for glass neon — substantial savings for EU/US ratepayers.
• Low heat emission: Surface temperature <30°C even after 24hrs continuous operation — safe to touch, no fire risk near flammable materials, minimal heat buildup in enclosed sign boxes.
• 50,000-hour rated lifespan: ~5.7 years of continuous operation, or ~11.4 years at 12hrs/day — minimal maintenance vs. glass neon’s frequent gas-refill and electrode-replacement cycles.
• 1/10 the energy consumption of glass neon​ — fully enclosed electronics, no exposed glass tubing, no hazardous gases.

•

  Why Replace Glass Neon With This Flex?

  Main Point of Glass Neon	Solved by Vasten 8×16mm Flex
  Fragile borosilicate tubing, 15%+ breakage in transit	100% unbreakable PVC jacket, <1% freight loss
  3kV–15kV high voltage, requires certified installers	110V/220V AC direct plug-in, standard electrician can install
  Fixed bend radii, cannot follow tight curves	4cm bend diameter, follows arched windows & fine logo scripts
  25–30W/m power draw, high electricity cost	8W/m, 90% energy savings
  Frequent gas leaks & electrode failure	50,000hr rated lifespan, zero maintenance
  Visible LED hotspots, uneven glow	Milky-white PVC diffuser, 120° continuous even glow, no dots



  Wide Application Scenarios

  This product is widely used across commercial and residential projects:

  🏢 Architectural & Building Applications

  Indoor architectural outline decorations: Office building cornices, hotel lobby dropped-ceiling coves, mall atrium edges, theater auditorium walkways

  Outdoor building outlines: Storefront borders, window frame accents, canopy edges, roofline contours (covered/semi-outdoor environments)

  🪧 Advertising & Signage

  Indoor/outdoor advertising signs: Chain store logo outlines, "OPEN" scripts, pop-up shop signage, backlit signage letters

  Board fringe illumination: Billboard edge lighting — slim 8mm profile barely visible during daytime, delivers even glow at night without blocking ad content

  🌆 Urban & Landscape Lighting

  Urban lighting: Municipal walkway guidance, pedestrian pathway edges, bridge parapet outlines (covered sections), public square feature lighting

  Walkway & park guiding-line system: Park trail edges, residential community entry paths, garden landscape accents

  Landscaping: Planter edge lighting, tree pit accents, water feature perimeters

  🏨 Commercial & Entertainment Venues

  Hotels: Lobby feature walls, reception desk accents, corridor guidance, bar counter-tops

  Department stores: Shelf-edge accents, window display outlines, escalator well trims

  Public entertainment venues: KTV mood outlining, club counter lighting, theater aisle guidance, aircraft cabin mood lighting, amusement park decorative outlines



  🏠 Residential & DIY

  Bedroom accent lighting: Headboard glow, wardrobe edge lighting

  Garden & patio: Patio perimeters, deck edges, fence accents

  Dining & accent: Under-cabinet lighting, dining table backlighting, stairway step lighting

  Cove lighting: Ceiling coves, floor coves, feature wall backlighting

  ---

  Color Options

  Available in 7 standard colors:

  Pink​ (primary, featured in this SKU)

  Red

  Blue

  Yellow

  Green

  Orange

  White

  Warm White

  All colors use the same milky-white ECO PVC jacket for optimal light diffusion. Custom color jackets (e.g., pink jacket for background tint applications) available on request.

  ---



  Vasten Quality Backing

  Manufacturer since 2011: 5,000+ sqm dust-free workshop, automated production lines

  Strict quality control: From LED chip and FPCB incoming inspection to final burn-in testing

  Certifications: CE & RoHS compliant for global customs clearance

  Production capacity: 3,000 meters/month per SKU

  Lead time: 3–5 days for standard orders

  Packaging: 50 meters per carton, carton size 33×33×32cm

  ---

  ⚠️ Installation & Model Selection Notes

  Voltage selection: Choose 110V AC version for North American projects; 220V AC version for EU/Asia projects.

  Cutting: Cut ONLY at marked intervals — 50cm for 110V (120 LEDs per cut unit), 100cm for 220V (120 LEDs per cut unit). Cutting elsewhere damages the circuit.

  Waterproofing: All cut points, connector joints, and strip terminations MUST be sealed with provided silicone glue during installation to maintain IP65/IP66 rating.

  Environment: IP65/IP66 rated for dust-tight and low-pressure water jet resistance. For full outdoor exposure (direct rain, coastal salt spray), we recommend upgrading to our silicone co-extruded IP67 flex series.

  Bend direction: Horizontal bending only. Min. bend diameter 4cm. Do not twist or bend vertically.

  Max run length: Respect maximum single-feed run lengths (100m for 110V, 150m for 220V) to avoid end-of-run voltage drop.

  Ordering Information

  Parameter	Specification
  Brand	Vasten
  Model (110V)	TA-CS-2835P-110V
  Model (220V)	TA-CS-2835P-220V
  MOQ	100 meters (110V) / 200 meters (220V)
  Price	Negotiable per meter
  Lead Time	3–5 days
  Payment Terms	T/T, PayPal, Western Union
  Supply Ability	3,000 meters/month
  Packaging	50m/carton, 33×33×32cm

Specification:
