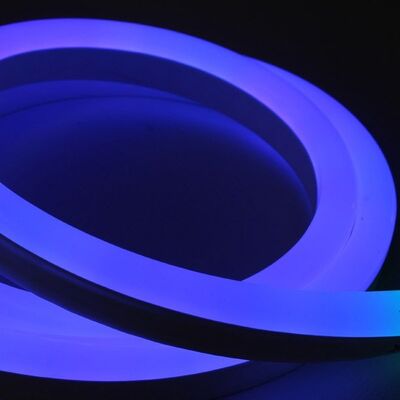

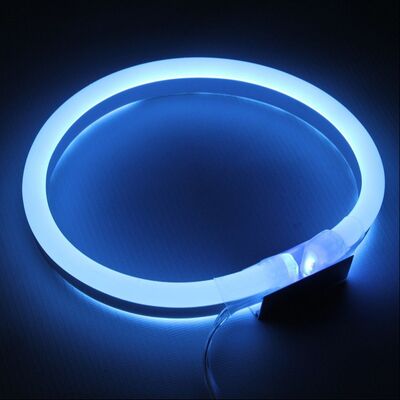

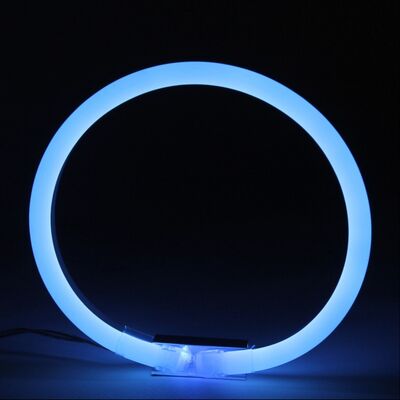

Mini LED Neon Flex with dome surface option high brightness even color mixture and double protected LED components for performance

Product Positioning

Standard LED neon flex (12×22mm cross-section) is too bulky for narrow architectural trims, slim storefront borders, and light-duty furniture/deck accents. Our extra-thin line (5×12mm / 8×16mm cross-section) solves this: it keeps the iconic neon glow in a profile that fits where thicker flex can’t, while retaining IP65 waterproofing and 90% energy savings vs. traditional glass neon. It is the default choice for cost-conscious indoor/semi-outdoor rollouts where space is tight and brand consistency matters.

---

1. 100pcs High-Brightness SMD2835 LEDs/m

We specify SMD2835 over larger SMD5050 for this ultra-thin line to balance brightness, glow uniformity, and cost:

• 100 LEDs/m high density eliminates visible LED hotspots even at close inspection, critical for fine brand logos and narrow trim runs
• SMD2835 packages (2.8×3.5mm) are 30% smaller than SMD5050, allowing higher density in the slim 5mm/8mm profile without crowding the FPCB
• 105–120 lm/W efficacy: 12W/m max power draw delivers ~1200 lm/m brightness, with 90% energy savings vs. 3kV–15kV traditional glass neon
• Strict SDCM <3​ (Standard Deviation of Color Matching) tolerance: Zero perceptible color shift between batches, even for 50+ location retail rollouts ordered years apart
• Ra >80 (white variants) for comfortable retail/hospitality glow; RGB variants use 1R1G1B per 2835 package for clean color mixing without fringing
• 12V/24V DC low-voltage drive, <30℃ surface temp, safe for public indoor/outdoor spaces

---

2. Dual Protection for LEDs & Components – No “Unit Failure” Cascade

Cheap ultra-thin flex uses all-series circuits to save space: one LED failure blacks out the entire section, ruining brand visibility for commercial clients. Our dual-protection design eliminates this risk even in the slim profile:

• Circuit-level redundancy: 12V units group 3 LEDs into an independent parallel branch, 24V units group 6 LEDs per branch. If a single LED degrades/dies, the rest of its branch stays lit, and failure does not cascade to the rest of the run.
• Component-level sealing: Every SMD solder joint is secondary-coated with clear silicone before PVC jacketing, preventing moisture/oxidation from reaching circuits even if the outer jacket is nicked during install. Injection-molded nylon end caps + potted sealant at strip terminations add a second layer of isolation for the internal circuit.
• 2oz thickened copper FPCB​ (vs. standard 1oz for cheap slim flex): Minimizes voltage drop on long runs (up to 10m per power feed) — no “bright head / dim tail” effect even in the thin profile.
•

3. First-Class Eco-Friendly UV-Resistant PVC Jacket

• RoHS/REACH certified: Zero lead, mercury, phthalates, or other EU/US-restricted substances — safe for indoor public spaces (schools, food retail, healthcare) and light outdoor use
• Imported UV stabilizer additive: Resists photodegradation for 18–24 months in covered outdoor environments (storefront canopies, sign boxes, walkway trellises) without yellowing, brittleness, or surface chalking
• Upgrade note: For full outdoor exposure (direct rain, coastal salt spray, >2 years UV), we recommend our silicone co-extruded series — this PVC line is optimized for cost-conscious narrow-space/indoor-first projects.

4. Extra Thin, Lightweight, Dome Surface Optional – High Brightness, Even Color Mixing

• Ultra-slim profile: 5×12mm / 8×16mm cross-section (30–40% thinner than standard 12×22mm flex), 0.18–0.22kg/m weight (60% lighter than glass neon) — fits narrow storefront borders, furniture edges, dropped-ceiling coves, and sign boxes where thicker flex won’t fit
• Dome surface optional: Semi-circular dome PVC profile with inner micro-diffuser scatters direct LED light into 120° continuous, linear glow — no visible LED dots even close-up, no dark spots between cut points/LED clusters, even for fine brand typography (e.g., café “OPEN” scripts, convenience store logo outlines)
• Color mixing: RGB variants deliver clean, even color blends with no “halo” fringing, perfect for brand logos that need consistent color across 10+ locations

5. Easy to Install, Cuttable & Reconnectable

• Marked cut points: Black cut lines every 3cm (12V) / 6cm (24V) along the strip — cut only at these points to avoid damaging parallel circuits
• IP65 reconnect accessories included: Matching nylon waterproof connectors + pre-measured silicone sealant kits are available separately. Cut, plug in, reseal with provided glue in <5 minutes, and retain full IP65 rating
• Mounting flexibility:
  • Indoor: Pre-applied 3M VHB double-sided tape on FPCB backside for peel-and-stick install (perfect for furniture edges, cabinet undersides)
  • Outdoor: Compatible with standard narrow aluminum extrusion channels (sold separately) for added protection and heatsinking
• 20mm minimum bend radius: Follows narrow signage borders, round column wraps, and irregular furniture edges without kinking FPCB or jacket

6. Protection Rating IP65 (Critical Install Requirement)

• IP65 certification: Dust-tight, resistant to low-pressure water jets (light rain, sprinkler overspray, outdoor humidity) — suitable for covered patios, sign boxes, walkway trellises, and narrow storefront borders. Not submersible — for immersion use, upgrade to our IP68 silicone series.
• Mandatory install step: All cut points, connector joints, and strip terminations MUST be sealed with the provided silicone glue during installation to maintain IP65 rating. Our accessory kits include step-by-step sealing instructions to avoid this common failure point that causes most “waterproof neon” field failures.

Typical Applications (Extra-Thin SMD2835 PVC Series)

• Narrow storefront logo borders & café window trims
• Furniture edge lighting (bed heads, gaming desks, RV/campervan decor)
• Shopping mall dropped-ceiling narrow coves
• Lightbox signage backlighting (even glow behind thin acrylic faces)
• Municipal park covered walkway edge marking

Vasten Quality Backing (Same Bar Across All Tiers)

• 100% FPCB/LED incoming batch inspection
• 48–72hr mandatory burn-in per production batch to catch early-life failures
• 2-year pro-rata warranty
• CE / RoHS / EMC / UKCA certified for global customs clearance
• Project pedigree: Same QC standards used for Disneyland, Happy Valley, and British royal wedding installs — your rollout gets the same reliability at a lower unit cost.

What are the applications of double lighting LED neon?

1. Indoor and outdoor architectural outline decorations

2. Walkway and park guiding-line lighting system, and landscaping

3. Ideal for bridge, sculpture, building contour, and board fringe illuminating decoration
