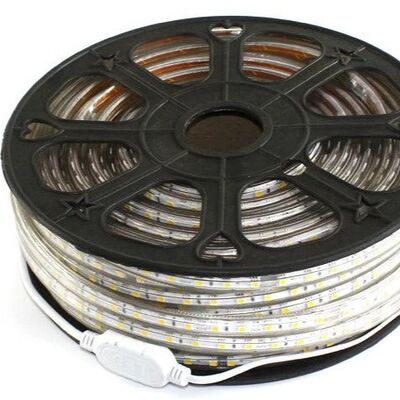

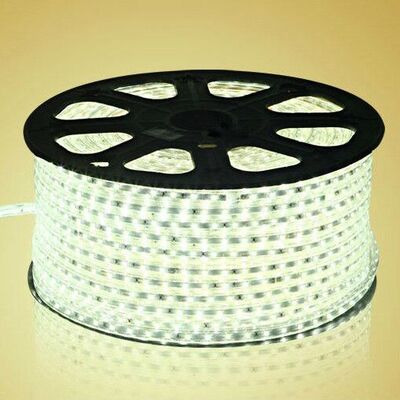

High Voltage LED Strip 110V AC Input 100M Long SMD 3528 60 LEDs Per Meter With Easy Installation And Cutting Points

1. High-Voltage Input + Ultra-Soft FPC + High-Brightness SMD3528

• Input flexibility: AC110V (North America/Japan market) / AC220V (EU/UK/AU/Asia) — no external constant-voltage driver required. Cuts installation cost by ~60% for long runs (no driver procurement, no low-voltage wiring layout, no specialist LED installer needed).
• FPC substrate: 2oz thickened flexible polyimide, ultra-soft (minimum 15mm bend radius) that conforms to curved surfaces (building arches, cylindrical columns, signage boxes) without cracking solder joints.
• LED spec: 120pcs/m high-brightness SMD3528 (Epistar chip, Ra>80 for white variants, 100–110 lm/W) — lower profile and softer glow than SMD5050, ideal for uniform backlighting and outline applications where ultra-high brightness isn’t required.

2. Even LED Distribution + Wide Color Range

• 120 LEDs/m high-density layout eliminates visible LED dots and dark gaps, delivering smooth, linear glow even for fine architectural outlines.

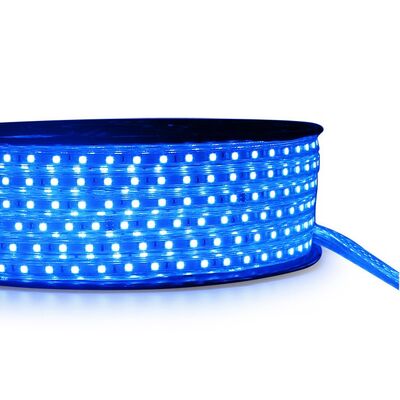

• Available in 8 standard single colors: Warm White (2700K/3000K), Natural White (4000K), Cool White (6000K), Red, Green, Blue, Yellow, Orange. Custom CCT/pink/purple available for MOQ 50 rolls. TRIAC dimming compatible for adjustable ambience in retail/hospitality projects.

3. High Brightness, 120° Viewing Angle, Stable Performance, Flexible Form Factor

• 120° wide beam spread delivers even light distribution without dark spots, readable from 20m+ for building facade outlines.
• Stable constant-current drive (built into AC input circuit) prevents flicker, even for high-volume runs up to 100m per power feed.
• Lightweight (~1.2kg/5m roll) and flexible — installs on flat, curved, or corrugated surfaces without additional mounting hardware (3M VHB tape pre-applied for indoor; aluminum channels optional for outdoor).

4. Improved Softness vs. Standard Rigid LED Strips

• FPC + PVC jacket bonding ensures the strip bends smoothly without stressing internal circuits, even for repeated handling during install.
• PVC jacket acts as secondary insulation and mechanical protection, so the strip survives jobsite knocks, shipping, and minor impacts that would damage bare FPC strips.

5. 1-Meter (120-LED) Cutting Unit with Parallel Circuit Design

• This parallel design means if one 1m segment is damaged, the rest of the run stays lit (no total strip failure like series-only low-voltage strips).
• For projects requiring shorter cut lengths, we recommend our 12V/24V low-voltage SMD2835/5050 series (cuttable every 2.5–5cm).

6. Low Light Decay & Long Lifespan

• <3% luminous decay @ 3,000hrs, <8% @ 10,000hrs, rated lifespan 30,000–50,000hrs — 10x longer than traditional glass neon, 2x longer than entry-level rigid LED strips.
• Low heat output (<35°C surface temp) reduces thermal stress on the FPC and jacket, extending service life even in enclosed sign boxes.

7. AC110V/220V Input for Easy & Safe Installation

• Eliminates the need for low-voltage wiring and external drivers — connect directly to mains power via a standard plug (or hardwire to junction box) using a certified electrician. No specialist LED installer required, cuts project labor cost by ~50% for large facade/outline runs.
• Double-insulated PVC jacket (UL94-V0 flame retardant) and potted end caps meet IEC60598 safety standards for commercial installs. Overcurrent protection built into input circuit prevents overload.

8. IP65 Waterproof Rating – Indoor & Semi-Outdoor Use

• IP65 rating: Dust-tight, resistant to low-pressure water jets (light rain, sprinkler overspray, outdoor humidity). Suitable for:
  • Outdoor: Building facade outlines, bridge parapet accents, covered mall entry signs, festival decor
  • Indoor: Supermarket shelf backlighting, dropped ceiling cove lighting, cinema aisle guidance
• ⚠️ Not submersible — for full outdoor/coastal/immersible use, upgrade to our IP68 silicone-co-extruded low-voltage series.

Typical Applications

• Large-scale commercial building facade outlines
• Municipal bridge/parapet lighting
• Retail chain storefront signage backlighting
• Event/festival temporary outdoor decor (reusable, shatterproof)
• Indoor supermarket/hypermarket shelf backlighting

Vasten Quality Backing (Consistent Across All Tiers)

• 100% FPCB/LED incoming inspection
• 48–72hr mandatory burn-in per production batch
• 2-year pro-rata warranty
• CE / RoHS / EMC certified for global customs clearance
• Project pedigree: Supplied to Disneyland, Happy Valley, and British royal wedding installs (same QC bar across all product tiers)
