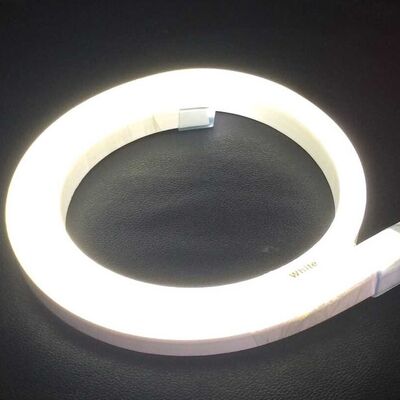

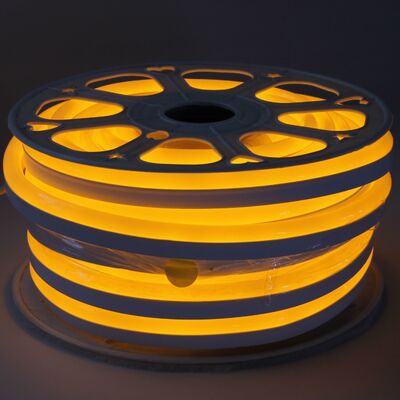

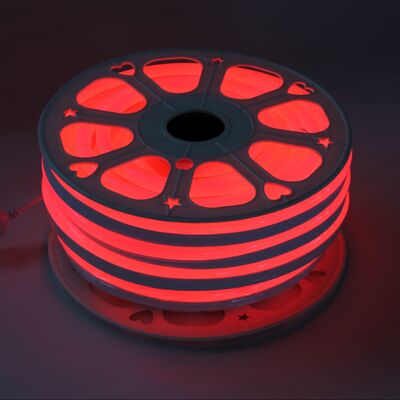

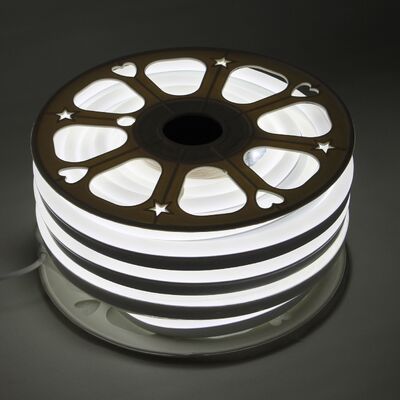

Durable LED Neon Tube Light Featuring 120pcs SMD2835 LEDs Eco Friendly PVC Material and Protection Rating IP65 Waterproof

What are the advantages of Side view LED neon flex?

1. High-Density SMD2835 Light Source – Twice as Bright as Standard SMD3528

• Single SMD2835 output: ~12 lm (vs. ~6 lm for SMD3528) → 2× higher brightness at the same meterage
• Power draw: 14.4W/m (12V/24V DC low-voltage) → 90% energy savings vs. equivalent glass neon tubes
• SDCM <3 color tolerance (Standard Deviation of Color Matching) → zero perceptible batch-to-batch color shift for multi-location rollouts
• CRI >80 (white variants) for clean retail/commercial glow; RGB variants use 1R1G1B per 2835 package for flicker-free color mixing
• Surface temperature <30°C, safe for public spaces and proximity to combustible decor

2. Dual Protection Circuitry – No Single-Point Failure

• Parallel branch design: 12V units group 3 LEDs per branch, 24V units group 6 LEDs per branch. If a single LED degrades, the rest of its branch stays lit, and failure does not cascade to the rest of the tube.
• Component-level sealing: Every SMD solder joint is secondary-coated with clear conformal coating before PVC jacketing, preventing moisture/oxidation from reaching the circuit even if the outer jacket is nicked during install. Injection-molded nylon end caps + potted silicone at tube terminations add a second layer of isolation.

3. Premium Eco-Friendly UV-Resistant PVC Jacket

• RoHS/REACH certified: Zero lead, mercury, or phthalates — safe for indoor public spaces (schools, food retail, healthcare) and light outdoor use
• Imported UV stabilizer additive: Resists photodegradiation for 18–24 months in covered outdoor environments (storefront canopies, sign boxes, walkway trellises) without yellowing, brittleness, or surface chalking
• Upgrade note: For full outdoor exposure (direct rain, coastal salt spray, >2 years UV), we recommend our silicone co-extruded neon flex series — this PVC tube line is optimized for cost-conscious light outdoor/indoor-first projects.

4. Dome Profile & 180° Uniform Illumination

• Built-in diffusion: The dome shape acts as a secondary diffuser, breaking up LED point sources into 180° continuous, linear glow — zero visible LED dots, even on close inspection, no dark spots between LED clusters
• Clean color mixing (RGB variants): The rounded inner wall reflects and blends light from the 3 dies per SMD, eliminating color fringing (e.g., no red "halo" around green text) — critical for consistent brand glow across long runs
• 180° beam spread covers both the front face of signage/architecture and shallow side angles, perfect for outline applications where “one-side-only” glow looks cheap

5. Tool-Light Installation – Cuttable & Reconnectable

• Marked cut points: Black cut lines every 0.5m/1m along the tube (aligned to parallel branch breaks) — cut only at these points to avoid damaging circuits
• IP65 reconnect accessories included: Matching nylon waterproof connectors + pre-measured silicone sealant tubes are available separately. Cut, plug in, reseal in <5 minutes, and retain full IP65 rating
• Mounting flexibility:
  • Compatible with standard aluminum extrusion channels (sold separately) for added protection and heatsinking
  • Can be directly embedded into pre-cut slots in sign boxes or architectural millwork for a flush finish
• 20mm minimum bend radius (only for very gentle curves; for tight bends, use our flex strip line instead)

6. IP65 Protection Rating & Critical Installation Note

• IP65 certification: Dust-tight, resistant to low-pressure water jets (light rain, sprinkler overspray, outdoor humidity) — suitable for covered patios, sign boxes, and walkway outlines. Not submersible — for immersion use, upgrade to our IP68 silicone series.
• Mandatory install requirement: All cut points, connector joints, and tube terminations MUST be sealed with the provided silicone glue​ during installation to maintain IP65 rating. Our accessory kits include pre-measured glue tubes and step-by-step sealing instructions to avoid this common failure point.

Typical Applications (PVC SMD2835 Tube Series)

• Chain convenience store / café / pharmacy storefront edge outlines
• Commercial building cornice and window-frame linear accents
• Shopping mall interior dropped-ceiling cove lighting
• Lightbox signage backlighting (even glow behind acrylic faces)
• Municipal covered walkway / park pathway edge marking

Vasten Quality Backing (Same Bar Across All Tiers)

• 100% FPCB/LED incoming batch inspection
• 48–72hr mandatory burn-in per production batch to catch early-life failures
• 2-year pro-rata warranty
• CE / RoHS / EMC / UKCA certified for global customs clearance
• Project pedigree: Same QC standards used for Disneyland, Happy Valley, and British royal wedding installs — your rollout gets the same reliability at a lower unit cost.

Specification of LED neon flex

What are the applications of sideview LED neon?

1. Indoor and outdoor architectural outline decorations

2. Walkway and park guiding-line lighting system, and landscaping

3. Ideal for bridge, sculpture, building contour, and board fringe illuminating decoration.
