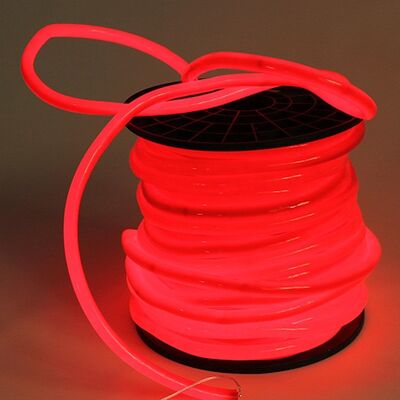

Vasten's Red Jacket Mini Size 24V LED Neon Flex Rope Light​ (Model: TA-CS-R2835R-24V) is a high-brightness, eco-friendly, and UV-resistant linear lighting solution engineered as a superior, safer, and far more energy-efficient replacement for traditional glass neon. With its compact mini profile and flexible PVC jacket, it is the default choice for cost-conscious indoor and semi-outdoor rollouts where space is tight and brand consistency matters — perfect for home décor, architectural outlines, signage borders, and creative DIY installations.

Traditional glass neon has been the go-to for luminous signage for decades, but it comes with well-documented drawbacks: fragile borosilicate tubing, high-voltage gas ignition (3kV–15kV) requiring certified installers, frequent maintenance for gas leaks and electrode failures, and limited form flexibility. Vasten's mini LED neon flex replicates the iconic "neon glow" while solving all of these pain points — delivering up to 90% energy savings, safer low-voltage operation, and form flexibility that unlocks design possibilities glass neon simply can't touch.

Parameter	Specification
Product Model​	TA-CS-R2835R-24V
LED Type​	High-brightness SMD2835
Material​	First-class eco-friendly UV-resistant PVC (Red Jacket)
Working Voltage​	24V DC
Power Consumption​	8W/m
LED QTY per meter​	108 pcs

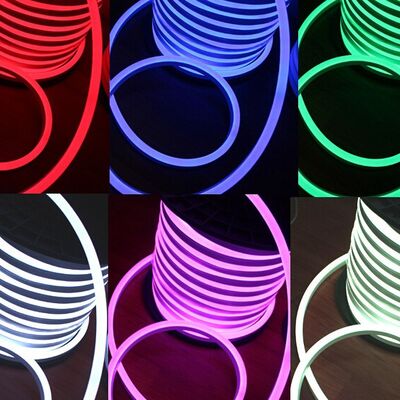

Available Colors​	Red, Green, Blue, Orange, Yellow, White, Pink
Min. Cutting Unit​	6 LEDs
Min. Cutting Length​	2.18″ / 5.54 cm
Max Length​	65.62′ / 20 m
Protection Rating​	IP65 (all joints must be sealed with glue during installation)
Min. Bending Diameter​	4 cm (horizontal bending only)
Ambient Temperature​	-30°C to +45°C
Certification​	CE & RoHS
MOQ​	200 meters
Lead Time​	3–5 days
Packaging​	50 meters per carton, 33×33×32 cm
Supply Ability​	6,000 meters/month

6 Core Advantages — Detailed Breakdown

1. Adopt 108pcs High-Brightness SMD2835 LEDs/m

• 108 LEDs/m high density​ eliminates visible LED hotspots even at close inspection — critical for fine brand logos and narrow trim runs
• SMD2835 packages (2.8×3.5mm)​ are 30% smaller than SMD5050, allowing higher density in the slim mini profile without crowding the FPCB
• 105–120 lm/W efficacy: 8W/m power draw delivers high-lumen output with up to 90% energy savings​ vs. 3kV–15kV traditional glass neon
• 12V/24V DC low-voltage drive​ — safe to touch, no high-voltage certifications required

2. LED and Components Double Protected — No Unit Failure

• Circuit-level redundancy: Every 6 LEDs (24V) form an independent parallel branch. If a single LED fails, its branch continues operating — failure does not cascade
• Component-level sealing: Every SMD solder joint is secondary-coated to prevent moisture ingress and oxidation
• Result: Zero "unit failure" cascade — critical for commercial and architectural installs where downtime is unacceptable

3. First-Class Eco-Friendly UV-Resistant PVC Material

• Eco-friendly & non-toxic: RoHS-compliant, zero lead, mercury, or hazardous substances — safe for indoor public spaces and outdoor environments
• UV stabilization: Imported UV stabilizer additives resist photodegradation, maintaining optical clarity and flexibility over time

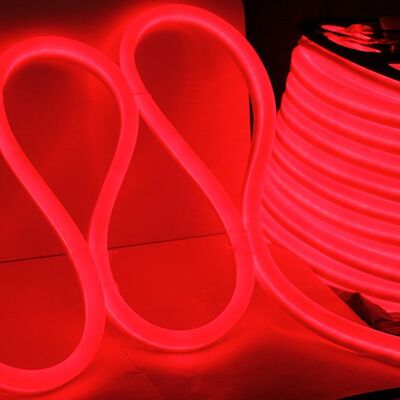

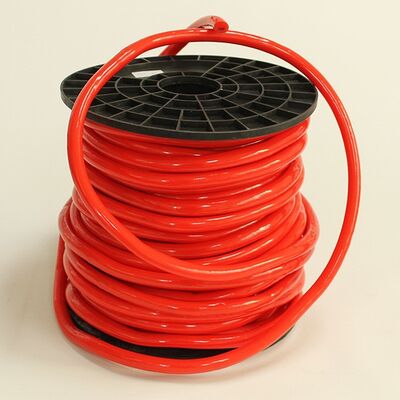

• Red jacket option: The colored PVC jacket delivers a vibrant, saturated red glow — ideal for brand accents, festive decorations, and eye-catching building outlines
• Operating temperature: -30°C to +45°C — performs reliably in northern winters and hot-climate summers

💡 Upgrade note: For full outdoor exposure (direct rain, coastal salt spray, 3–5+ years UV), we recommend our silicone co-extruded IP67 series. This PVC line is optimized for cost-conscious narrow-space/indoor-first projects.

4. Extra Thin, Lightweight, Soft to Bend — High Brightness, Uniform Light, No LED Dot or Dark Spot

• Mini extra-thin profile: Compact cross-section fits where standard flex cannot — narrow architectural trims, slim storefront borders, and light-duty furniture/deck accents
• Lightweight: Approximately 0.18–0.22 kg/m — 60% lighter than glass neon
• 4 cm minimum bend diameter (horizontal): Follows curved building outlines, round signage, column wraps, and irregular landscape features without kinking FPCB or jacket
• Uniform glow: The milky-white diffuser jacket scatters direct LED emission into continuous, dot-free light — no visible LED dots even close-up, no dark spots between cut points or LED clusters
• Even for fine brand typography: Perfect for café "OPEN" scripts, convenience store logo outlines, and intricate brand marks where dot-free uniformity is non-negotiable

5. Easy to Install — Cuttable & Reconnectable

• Marked cut points: Black cut lines every 5.54cm (24V) along the strip — cut only at these points to avoid damaging parallel circuits
• Reconnect accessories available: Matching nylon waterproof connectors, splice pins, and end caps enable cut/reseal operations while retaining full IP65 rating
• Tool-light setup:
  • Indoor: Pre-applied 3M VHB double-sided tape on FPCB backside for peel-and-stick installation
  • Outdoor: Compatible with standard narrow aluminum extrusion channels (sold separately) for added protection and heatsinking
• Horizontal bending only: Minimum 4cm bend diameter — follows arched windows, bridge parapets, and irregular shapes without kinking

6. Protection Rating IP65 — With Critical Seal Requirement

• IP65 certification: Dust-tight, and resistant to low-pressure water jets (light rain, sprinkler overspray, outdoor humidity) — suitable for covered patios, building outlines, sign boxes, walkway edges, and narrow storefront borders
• Not submersible​ — for immersion use, upgrade to our IP67 silicone series
• ⚠️ Mandatory install step: All cut points, connector joints, and strip terminations MUST be sealed with the provided silicone glue during installation​ to maintain IP65 rating. This step is critical: unsealed joints are the #1 cause of field failure in "waterproof" neon flex
• Second layer of defense: The double-coated solder joints and sealed FPCB provide backup moisture protection even if the outer jacket is slightly damaged

---

Applications — Where Your Mini Neon Flex Belongs

🏠 Home Décor & Residential

• Bedroom, kitchen, dining, bathroom​ — accent lighting with dimmable ambiance
• TV backlight & cabinet lighting​ — reduce eye strain, add modern sophistication
• Garden, deck, and walkway lighting​ — IP65 rating handles outdoor humidity and light rain
• DIY household projects​ — hallways, stairs, windows — anywhere a flexible glow line is wanted

🏢 Building Outline & Architectural Lighting

• Outlining buildings & awnings​ — define architectural silhouettes at night
• Bridge, sculpture, and board fringe illumination​ — guide and beautify public infrastructure
• Signage letters backlighting​ — illuminate 3D channel letters with even, shadow-free glow
• Ceiling coves & floor coves​ — create floating light lines in interiors

🍸 Commercial & Hospitality

• Bar lighting & counter lighting​ — highlight premium spaces with even backlight
• Club backlight & accent lighting​ — set the mood with vibrant red glow
• Display cases & office bendable neon lights​ — museum-quality illumination without UV damage
• Restaurant & retail accent lighting​ — create memorable brand experiences

🎪 Events & Seasonal

• Wedding & party backdrops​ — safe, low-voltage, shatterproof décor
• Festival & landscape lighting​ — reusable, durable, easy to deploy and strike
• Park guiding-line lighting​ — safe, low-voltage illumination for public spaces

---

Why Vasten

• Manufacturer since 2011​ — 5,000+㎡ dust-free workshop, automated SMT production lines
• Proven project pedigree: Our flex lines have been used in projects for Disneyland, Happy Valley, and a British royal wedding
• Strict QC pipeline: 100% LED incoming inspection, 48–72hr mandatory burn-in per batch, 2-year warranty
• Global certifications: CE & RoHS compliant for worldwide customs clearance
• Supply ability: 3,000 meters/month; 3–5 day lead time for standard orders

---

Getting Started

• Matching nylon waterproof connectors
• Silicone sealant kits for IP65 reconnection
• End caps and mounting accessories
• Step-by-step installation and sealing instructions
