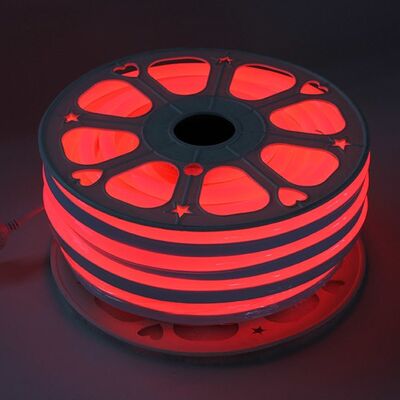

Detailed Technical Specification: Flex LED Neon Tube Light – Red Light, 14×26mm, 10W/m, IP65 Waterproof Soft Tube Strip Lights

Product Overview

• LED source: 120pcs/m SMD2835 (Epistar chip) — 2× brighter than SMD3528
• Power consumption: 10W/m
• Profile: 14mm × 26mm rectangular, dome surface
• Beam angle: 180° wide, even color mixture
• Protection rating: IP65 (joints must be sealed)
• Jacket material: First-class eco-friendly UV-resistant PVC
• Cutting interval: 50cm (12V/24V/110V) / 100cm (220V)
• Max run: 10m (12V) / 20m (24V) / 100m (110V/220V)

Detailed Advantage Breakdown

1. Standard Size LED Neon Tube Light – 120pcs SMD2835, 2× Brighter Than SMD3528

• 120 LEDs/m high density: Provides abundant light source distribution, eliminating visible LED hotspots even at close range. The 14×26mm standard size fits most architectural channels and sign boxes.
• 2× brightness vs. SMD3528: Each SMD2835 chip delivers 22–26 lumens at typical drive current, compared to ~8–10 lumens for SMD3528. Total output reaches ~600–700 lm/m for single-color red — visibly punchier for daytime storefront visibility and long-distance landmark recognition.
• Red light variant: True red (620–630nm) offers the highest human eye sensitivity among primary colors — perceived as exceptionally bright even at moderate power. Ideal for emergency signage, warning indicators, romantic ambiance, and high-visibility branding.
• Energy efficiency: 10W/m consumption yields 90% energy savings vs. 25–30W/m glass neon, with efficacy of 100–120 lm/W.
• Color consistency: SDCM <3 tolerance ensures identical red hue across multiple rolls and reorders.

2. LED and Components Double Protected – No Unit Failure

• Circuit-level redundancy: The flex incorporates a dual-circuit backup system. In DC versions, every 3 LEDs (12V) or 6 LEDs (24V) form an independent parallel branch. If a single LED fails, its branch continues operating — failure does not cascade.
• Component-level sealing: Every SMD solder joint is secondary-coated with clear silicone before PVC jacketing, preventing moisture ingress and oxidation even if the outer jacket is nicked during installation.
• Pure copper FPCB: 2oz thickened copper foil minimizes voltage drop on long runs — 12V DC supports up to 10m, 24V DC up to 20m single-feed without “bright head / dim tail” effect.
• Result: Zero “unit failure” cascade — critical for commercial and architectural installs where downtime is unacceptable.

3. First-Class Eco-Friendly UV-Resistant PVC Material

• Eco-friendly & non-toxic: RoHS/REACH certified, zero lead, mercury, or phthalates — safe for indoor public spaces (schools, hospitals, retail) and outdoor environments.
• UV stabilization: Imported UV stabilizer additives resist photodegradation for 18–24 months of light outdoor exposure (covered patios, sign boxes, walkway outlines) without discoloration or brittleness.
• Flame retardant: Meets UL94-V2 standard for indoor fire safety.
• Milky-white diffuser jacket: Semi-transparent PVC scatters direct LED emission into continuous, dot-free glow — critical for the “no LED dot” performance.
• Operating temperature: -30°C to +45°C — performs reliably in northern winters and hot-climate summers.
• Upgrade note: For full outdoor exposure (direct rain, coastal salt spray, >2 years UV), we recommend our silicone co-extruded IP68 series.

4. Dome Surface – 180° Lighting, High Brightness, Even Color Mixture

• Dome-shaped diffuser: The curved milky-white PVC surface acts as an optical lens, scattering LED light across a full 180° beam angle — wider than the 120° of flat-surface strips. Result: continuous, dot-free glow with no visible LED hotspots.
• Even color mixture: The dome geometry ensures uniform blending of emitted light — no dark bands, no color striping, no “zebra effect” even at close inspection.
• High brightness: 120 SMD2835 LEDs/m + dome optics = perceived brightness significantly higher than flat strips of equivalent LED density.
• Red light performance: Red wavelengths penetrate the PVC diffuser efficiently, delivering rich, saturated color with exceptional depth and warmth — ideal for creating dramatic, attention-grabbing accents.

5. Easy to Install – Cuttable & Reconnectable

• Marked cut points​ (varies by voltage variant):
  • 12V DC: every 50cm / 3 LEDs per cut unit
  • 24V DC: every 50cm / 6 LEDs per cut unit
  • 110V AC: every 50cm / 60 LEDs per cut unit
  • 220V AC: every 100cm / 60 LEDs per cut unit
  • Cut ONLY at marked black lines to avoid damaging parallel circuits.

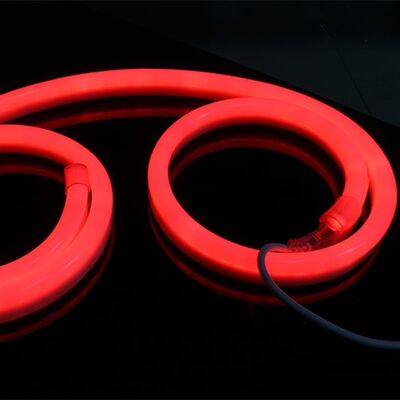

• Horizontal bending: Minimum bend diameter 4cm — bends horizontally to follow arched windows, bridge parapet curves, and irregular shapes without kinking.
• Reconnect accessories available: Nylon waterproof connectors, splice pins, end caps, and silicone sealant kits enable cut/reseal operations while retaining full IP65 rating.
• Mounting flexibility:
  • Indoor: 3M VHB double-sided tape on FPCB backside for peel-and-stick
  • Outdoor: Aluminum extrusion channels (sold separately) for added protection and heatsinking
• Tool-light setup: 12V/24V DC versions plug directly into power supplies; 110V/220V AC versions connect straight to mains.

6. Protection Rating IP65 – With Critical Install Requirement

• IP65 certification: Dust-tight and resistant to low-pressure water jets (light rain, sprinkler overspray, outdoor humidity) — suitable for covered patios, building outlines, bridge parapets, sign boxes, and walkway edges.
• Not submersible​ — for immersion use, upgrade to our IP68 silicone series.
• Mandatory install step: All cut points, connector joints, and strip terminations MUST be sealed with the provided silicone glue during installation​ to maintain IP65 rating. This step is critical: unsealed joints are the #1 cause of field failure in “waterproof” neon flex. Our accessory kits include step-by-step sealing instructions.
• Additional protection: The double-coated solder joints and sealed FPCB provide a second layer of defense against moisture ingress even if the outer jacket is slightly damaged.

Applications of Flex LED Neon Rope Light

1. Indoor & Outdoor Architectural Outline Decorations

• Indoor: Shopping mall atrium cornice outlines, hotel lobby feature walls, theater auditorium walkway edges, restaurant accent walls, nightclub perimeter lighting, bar and entertainment venue branding.
• Outdoor: Building waistline lighting, window arch outlines, retail storefront borders, covered walkway ceiling edges, restaurant patio perimeters, cinema and theater marquee outlines. IP65 rating handles rain and splash; UV-resistant PVC maintains optical clarity.
• Why red: Red commands attention like no other color — it's the color of urgency, passion, and celebration. Ideal for entertainment venues, romantic restaurants, emergency signage, and brands that want to make a bold, unapologetic statement.

2. Walkway & Park Guiding-Line Lighting System, and Landscaping

• Walkway guidance: Municipal park trail edges, residential community entry paths, resort garden walkways, rooftop bar terrace perimeters. The 180° beam ensures the guiding line is visible from both sides and above.
• Landscaping accents: Tree pit edge lighting, water feature perimeters, raised planter bed outlines, hedge bottom illumination. Red adds warmth and drama to nighttime landscapes, creating a romantic "sunset glow" effect.
• Safety & comfort: 12V/24V DC low-voltage operation (<30°C surface temperature) makes it safe for public parks. IP65 rating resists dew, sprinkler overspray, and morning condensation.
• Festive atmosphere: Red pathway lighting is increasingly popular for holiday displays, Chinese New Year decorations, Valentine's Day installations, and entertainment district ambiance.

3. Ideal for Bridge, Sculpture, Building Contour & Board Fringe Illuminating Decoration

• Bridge lighting: Cross-river bridge parapet outlines, pedestrian bridge handrail illumination. Red is instantly recognizable from long distances — improves navigational cues and creates a dramatic nighttime landmark.
• Sculpture illumination: Public art monument edge lighting, abstract sculpture contours. Red adds passion, energy, and contemporary flair to metal, stone, and glass structures.
• Building contour: High-rise roofline and waistline lighting, stadium exterior edge definition. 120 LEDs/m high brightness ensures visibility from 30m+ away even in urban light pollution.
• Board fringe illumination: Billboard border lighting, rooftop ad sign fringes, cinema and theater marquee outlines. Red fringe maximizes attention and creates a sense of excitement and urgency.
• Environmental resilience: -30°C to +45°C operating range suits northern winter bridges and desert summer installations. UV-stabilized PVC withstands prolonged sun exposure.

Technical Specifications (Typical Values)

Vasten Quality Backing

• Manufacturer since 2011: 5,000+ sqm dust-free workshop, automated SMT production lines
• Strict QC pipeline: 100% LED incoming inspection, 48–72hr burn-in per batch, 2-year warranty
• Certifications: CE / RoHS / EMC / UKCA compliant for global customs clearance
• Project pedigree: Same QC standards used for Disneyland, Happy Valley, and British royal wedding installs
• Supply ability: 3,000 meters/month per SKU; lead time 3–5 days for standard orders
