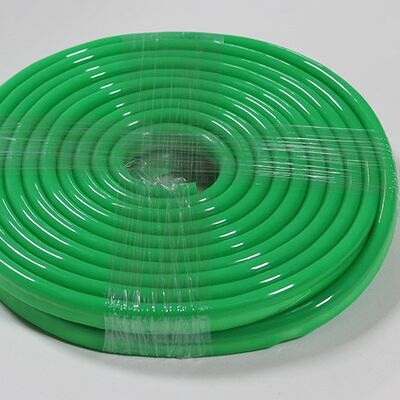

Mini LED Neon Flex 12V and 24V Input Options with 108pcs SMD2835 LEDs Eco Friendly UV Resistant PVC Material Waterproof IP65
| Place of Origin | China |
|---|---|
| Brand Name | Vasten |
| Certification | CE & RoHS |
| Model Number | TA-CS-G2835G-12V |
| Minimum Order Quantity | 200 meter |
| Price | Negotiation US$/Meter |
| Packaging Details | 50 meter per carton CTN size: 33*33*32cm |
| Delivery Time | 3-5 days |
| Payment Terms | T/T, Paypal, Western Union |
| Supply Ability | 3000 meter per month |
Product Details
| Material | ECO PVC | Housing Color | Green |
|---|---|---|---|
| Light Type | SMD LED | Waterproof | Yes |
| Cuttable | Yes | Fragile | No |
| Dimmable | Yes, Compatible With Dimmers | Light Color | Green |
| Lightingtype | Mini LED | Cuttablelength | Every 25mm Or 50mm |
| Work Lenght | 100m/328' | Heatdissipation | Efficient Heat Dissipation |
| Installationtype | Surface Mount Or Embedded | Operatingvoltage | 12V Or 24V DC |
| Operating Voltage | 12V Or 24V DC | Emitting Color | Green |
| Coloroptions | Multiple Colors Available | Flexibility | Flexible |
| Lifespan | 50,000+ Hours | ||
| Highlight | neon flexible led strips,led flexible neon lights |
||
Product Description
Green Housing Mini Size LED Neon Flex Rope Light 12V Input waterproof Home Decor
Detailed English Explanation — Advantages of Low-Voltage Mini LED Neon Flex
Below is an expanded, sales- and engineering-ready description for Vasten’s low-voltage mini neon flex (typical 12V SMD2835 PVC models such as TA-CS-*-2835-12V; 24V variants available). It follows your six points and adds the technical context buyers usually ask for.
Product overview
Vasten low-voltage mini LED neon flex is a flexible, PVC-jacketed linear light system designed as a safer, lighter and more energy-efficient alternative to traditional glass neon. Instead of fragile gas-filled tubes and high-voltage transformers, it uses a high-density SMD2835 LED array inside an eco-friendly diffuser jacket, runs on 12V/24V DC, and delivers continuous “neon-style” glow for home décor, commercial interiors, signage borders and semi-outdoor architectural outlining.
Typical mini PVC specifications (12V model):
- LED type: SMD2835, 108 pcs/m
- Power: 8W/m
- Voltage: 12V DC (24V optional)
- Material: eco-friendly PVC diffuser/jacket
- Colors: red, green, blue, orange, yellow, white, pink, etc.
- Min. cutting unit: 3 LEDs / 2.77cm (12V); 6 LEDs / 5.54cm (24V)
- Max run: approx. 10m (12V), longer on 24V depending on design
- Bending: min. 4cm diameter, horizontal bending
- Rating: IP65
- Ambient temp.: -30°C to +45°C
- Certification: CE, RoHS
- MOQ/pack: from 200m per variant on some standard SKUs; 50m carton, 3–5 days lead for stock-style orders
1. Adopts 108 pcs high-brightness SMD2835
Each metre uses 108 SMD2835 chips, giving high LED density for smooth linear output. SMD2835 is compact (approx. 2.8×3.5mm), thermally efficient and well suited to mini-profile neon where the pitch must be tight but heat must stay low.
Benefits:
- High and stable brightness for single-color decorative and signage use
- Dense pitch reduces gaps and improves uniformity along curves, letters and narrow trims
- 8W/m low power consumption versus traditional high-voltage glass neon
- 12V/24V low-voltage input improves safety for homes, shops, bars, events and public spaces
- Suitable for logo outlines, “OPEN” scripts, shelf/cove lines, bedroom/amazon-style décor, and architectural trim where consistent brightness matters
For white options, color consistency can be controlled to comfortable commercial tolerances; for RGB mini projects, controller-compatible versions can be quoted separately.
2. LED and components double protected — not unit failure
The strip is built with double protection at LED and component level. The purpose is to reduce the chance that one weak point causes the whole section to go dark.
What this means in practice:
- LED chips, solder joints and key components are protected against moisture, vibration and normal installation stress
- Circuit layout is designed to limit the impact of an individual LED issue so nearby sections keep working
- Lower field-failure risk for commercial installations that run long hours—bars, retail, hospitality, building outlines
- Fewer emergency replacements compared with glass neon, which can fail at electrodes, gas seals or transformers
Practical wording for buyers: “Double-protected LED and electronic components help prevent single-unit failure, improving reliability for continuous commercial operation.”
3. First-class eco-friendly, UV-resistant PVC material
The outer jacket uses eco-friendly PVC with UV resistance. This is important for mini neon used indoors and in covered/semi-outdoor locations.
Advantages:
- More environmentally responsible formulation compared with low-grade recycled PVC
- UV stabilizers help reduce yellowing and surface degradation under sunlight exposure
- Diffuser PVC produces uniform linear light rather than harsh point sources
- Lighter and less fragile than glass neon, easier to transport and handle
- Suitable for bedrooms, shops, restaurants, bars, sign boxes, covered patios, garden accents and building outlines under shelter
Note on application: IP65 PVC mini flex is best for indoor and covered/semi-outdoor use. For continuous rain, coastal, buried or long-service outdoor projects, Vasten also offers silicone co-extruded neon flex with higher IP ratings (IP66/IP67/IP68).

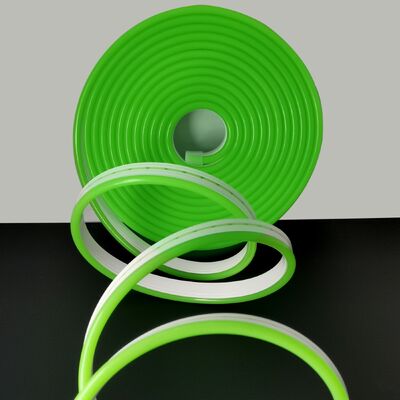

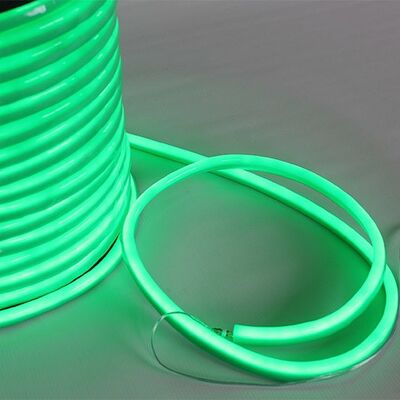

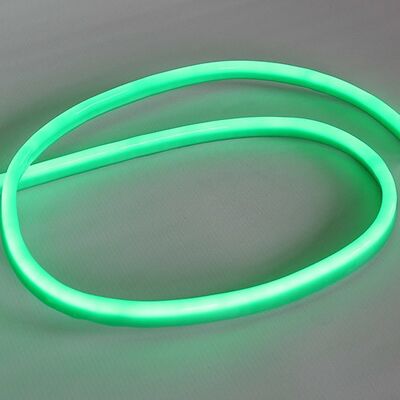

4. Extra thin, lightweight, soft to bend — high brightness, uniform light, no LED dot or dark spot
The mini profile is made for installations where standard neon flex would be too bulky.
Key points:
- Extra-thin construction fits narrow trims, furniture edges, sign backs, shelf borders, small-format logos and display cases
- Lightweight coil format is easier to mount with clips, brackets or suitable adhesive systems indoors
- Soft horizontal bending with 4cm minimum bend diameter allows letters, circles, logo curves and architectural radii without kinking the FPCB or jacket
- 108 LEDs/m plus diffused PVC jacket provide high brightness with uniform output
- No visible LED dots even at close viewing distance
- No dark spots between cutting sections or along normal runs—essential for premium signage and interior design
This makes the product suitable for brand-letter outlines, café/bar script, retail window trim, bedroom/amazon ambient lines, exhibition stands and detailed logo work where dot-free appearance is required.
5. Easy installation — cuttable and reconnectable
The strip is designed for standard low-voltage installation rather than specialist glass-neon work.
Installation features:
- Clear cutting marks along the strip
- 12V models can be cut every 3 LEDs / 2.77cm; 24V models every 6 LEDs / 5.54cm
- After cutting, use Vasten-compatible nylon waterproof connectors, splice accessories, end caps and sealant kits to reconnect sections
- Indoor mounting can use suitable VHB-type tape on prepared surfaces; outdoor/structural runs can use aluminum profiles or mounting clips
- Low voltage reduces electrical risk and simplifies power-supply selection
- Accessory kits normally include connectors, end caps, clips and glue/sealant for waterproof reconnection
Always cut only at marked positions to avoid damaging the circuit. For outdoor use, every reconnection must be resealed.
6. IP65 protection — all joints must be sealed with glue during installation
The mini neon flex is rated IP65 for dust-tight protection and resistance to low-pressure water jets. This covers light rain under cover, splashing, humidity and semi-exposed conditions.
Installation requirement:
- Every cut point, connector joint, end cap and power-entry termination must be sealed with compatible silicone/waterproof glue
- Unsealed joints are the most common cause of water ingress and premature failure
- Use neutral-cure silicone for electrical use; avoid acidic/bathroom sealants that may corrode contacts
- Allow sealant to cure per the accessory instruction—commonly 24 hours—before energizing or exposing to weather
- Use IP-rated power supplies, waterproof cable glands and drip loops for outdoor projects
Application limits:
- Suitable: covered patios, building outlines, sign boxes, walkway edges, garden accents, bridge/sculpture contour under shelter
- Not ideal without higher rating: continuous rain exposure, ground-level outdoor, coastal salt spray, submerged runs—use silicone IP66/IP67/IP68 instead
Application summary
Indoor: bedroom, living room, kitchen cabinet, shelf, TV backlight, dining cove, office feature wall, bar counter, club counter, reception branding.
Semi-outdoor/covered: storefront trim, building contour, sign boxes, garden edges, walkway guidance, landscape accents, bridge/sculpture outline under shelter.
Short marketing version for product page
Vasten Low-Voltage Mini LED Neon Flex uses 108 high-brightness SMD2835 LEDs per metre in an eco-friendly, UV-resistant PVC jacket. It operates on 12V/24V DC at around 8W/m, delivers uniform dot-free light, and bends to a 4cm minimum diameter for logos, lettering, shelves, bars and building outlines. LED and components are double protected to reduce single-point failure, while IP65 construction supports indoor and covered semi-outdoor use. The strip is cuttable and reconnectable with waterproof accessories, and all joints must be sealed with glue during installation to maintain waterproof performance. Lightweight, safe and easy to install, it is a reliable alternative to traditional glass neon for décor, signage and architectural lighting.
If you want, I can also prepare a 12V vs 24V comparison table or a distributor quotation sheet with MOQ, carton packing and lead time.
Specification:
| Product Model: | TA-CS-G2835G-24V | TA-CS-G2835G-12V | |
| LED Type: | SMD2835 | SMD2835 | |
| Material: | Eco PVC | Eco PVC | |
| Working Voltage: | 24V DC | 12V DC | |
| Power Consumption: | 8W/M | 8W/M | |
| LED QTY per meter: | 108pcs | 108pcs | |
| Avaliable color | Red, Green, Blue, Orange, Yellow, White, Pink | ||
| Min. Cutting Unit: | 6LEDs | 3 LEDs | |
| Min. Cutting Length: | 2.18''/5.54cm | 1.09''/2.77cm | |
| Max Length: | 65.62'/20m | 32.8'/10m | |
| Protection Rating: | IP65 | IP65 | |
| Min. Bending: | Dia 4cm | Dia 4cm | |
| Bending Direction: | Horizontally | Horizontally | |
| Ambient Temp.: | -30℃ to +45℃ | -30℃ to +45℃ | |
Features compared with traditional Glass neon lights:
-Super Brightness
-60000 hour life
-More durable and flexible
-Minimum bending radius: 4cm
-Flexible cut length, easy for making up different characters, patterns and forms
-High safety
-Easy for transportation and installation
Applications & Installations:
* Bedroom Light
* Garden Light
* Dining light
* Accent Light
* Bar Light
* Club
* counter Light
* office
